La ventana y tu primer mapa

Esta entrada no está traducida. Lees el texto en inglés. Ir al original en inglés

What it does

Phaseline is a map editor in a browser tab. Four parts are around the map. The asset bar on the left holds every asset. The INSPECTOR on the right shows the properties of the object that you selected. The command bar at the top finds any asset or command (Ctrl+K). The status bar at the bottom shows the zoom and the map scale.

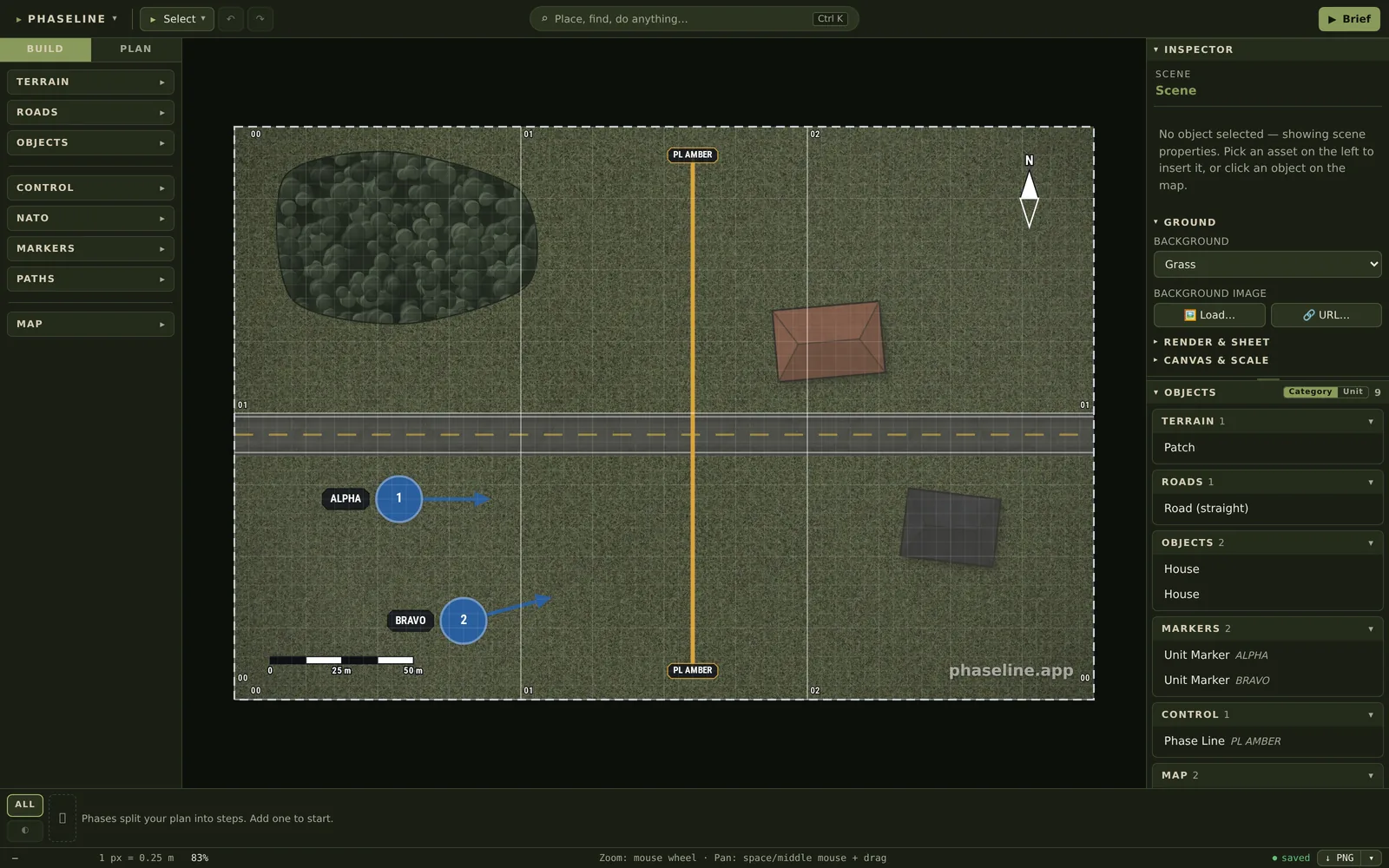

The Phaseline editor with a map on it: the asset bar on the left, the map in the middle, the Inspector on the right, the phase strip and the status bar at the bottom. — The four parts around the map. The dashed rectangle shows what the PNG will contain.

Why it is there

A briefing map usually starts as a screenshot of a game map. A person then draws arrows on it in a paint program. That map is correct for one minute. When the plan changes, the person makes the map again from the start. Phaseline keeps each object as an object. You move a phase line, you export the sheet again, and the remaining part of the map stays as it was.

How to use it

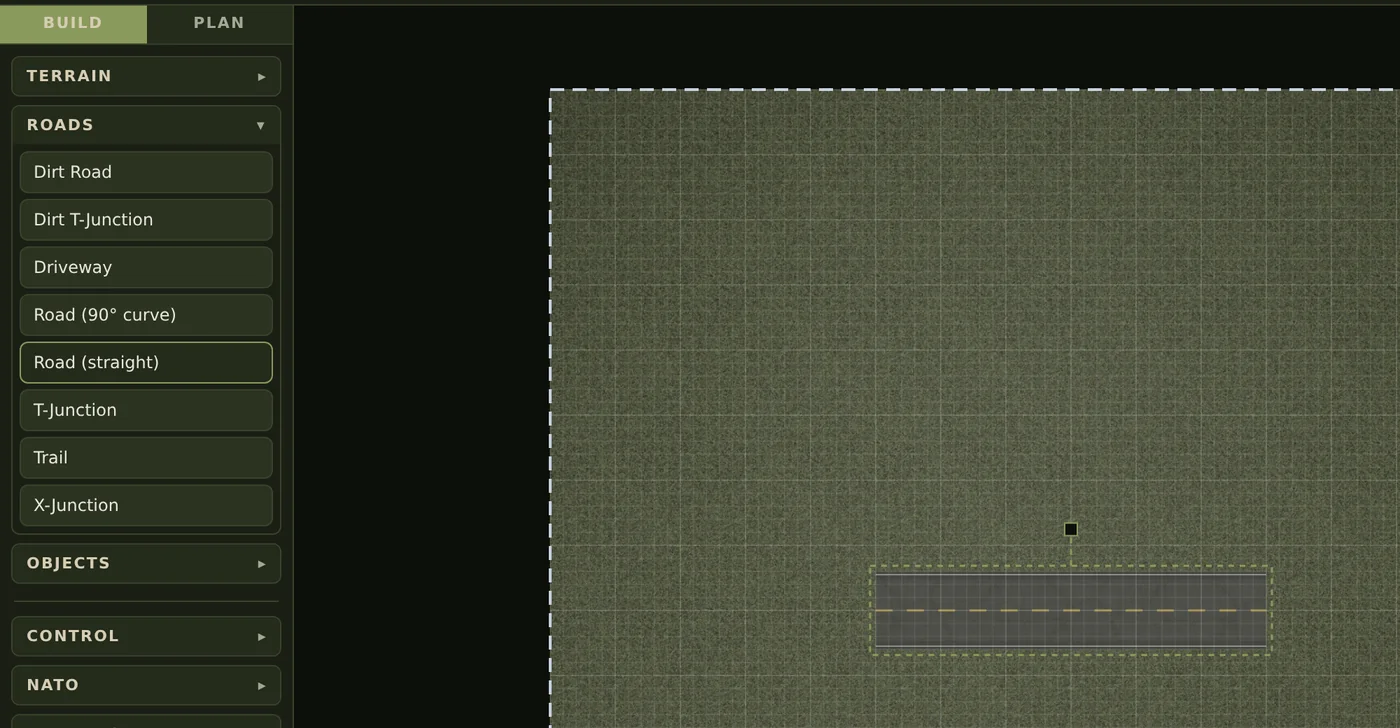

Click a block in the asset bar on the left, for example ROADS. The block opens and shows its assets.
Click an asset, for example Road (straight). Phaseline puts it in the middle of the map and selects it. To put it at a different point, drag the asset onto the map.
Drag the object to move it. Use the corner handles to change its size, and the handle above it to turn it.

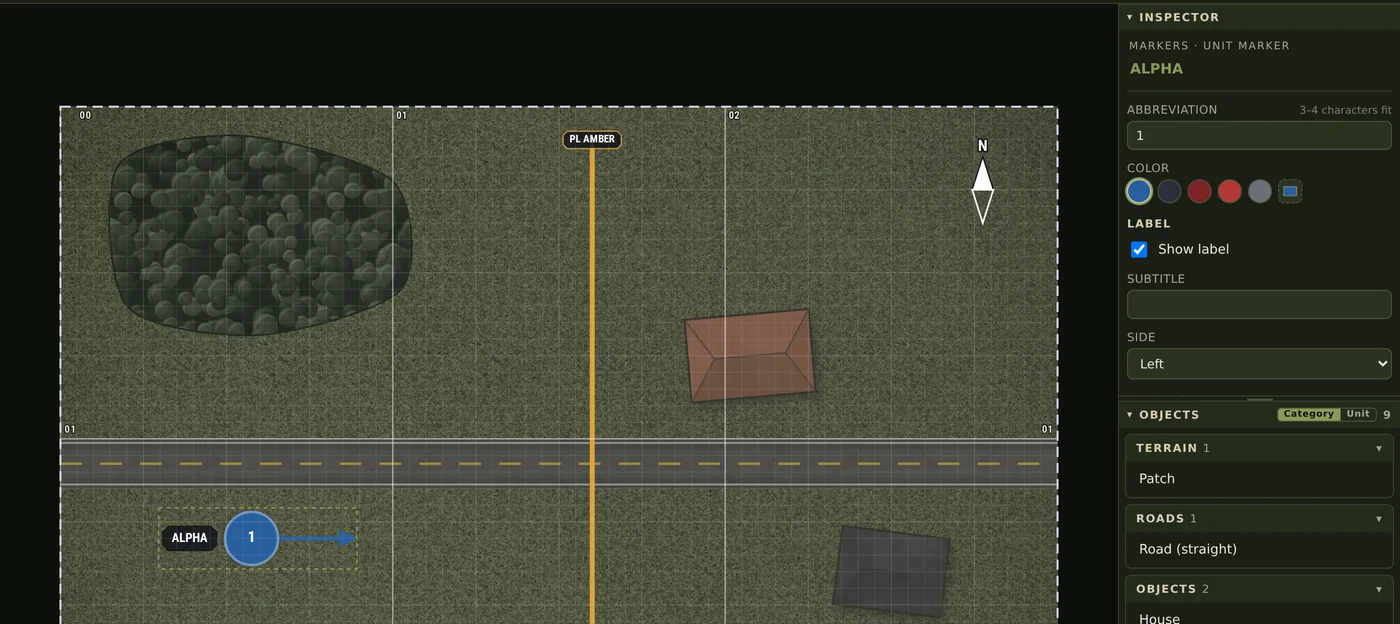

Change the properties of the object in the INSPECTOR on the right. A unit marker gets its abbreviation, its color and its label there.
Turn the mouse wheel to zoom. Hold the space bar or the middle mouse button and drag to move the map.
Push Ctrl+E to write a PNG of the area in the dashed rectangle.
Push Ctrl+S to keep the scene as a file, and Ctrl+O to open that file again.

On the map

The example is a first map: a road, a wood, two squads and one phase line. The map is 300 m wide, and the scale bar and the grid numbers come from that one value. Open it, move PL AMBER to a different place, and export the sheet again.

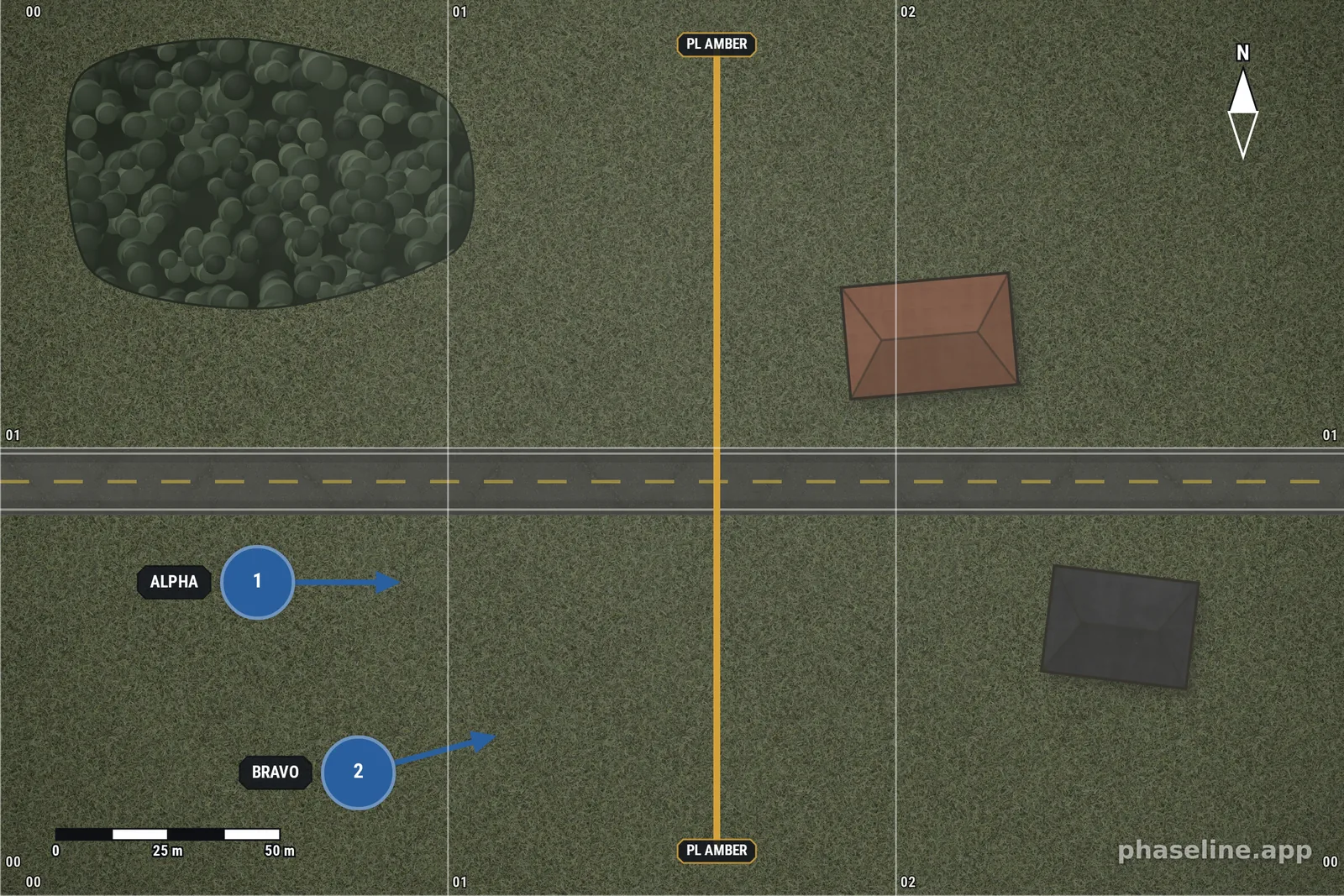

A tactical map with a road, a wood, two blue unit markers with direction arrows, the phase line PL AMBER, a north arrow and a scale bar. — A first map. Everything on it comes from the seven steps above. Abrir esta escena en Phaseline

Limits

The editor needs a wide screen and a mouse. There is no layout for a phone.
Phaseline keeps your scene in your browser, not on a server. A different computer does not have it. Ctrl+S makes the file that you can move and send.
If you delete the data of your browser, the scene goes with it. The file from Ctrl+S is the copy that stays.
Undo (Ctrl+Z) works while the tab is open. It does not go back to the work of yesterday.
The map has no cooperation between two persons. Two persons who plan together look at one screen, or they send the file.
